    Your current location :Home / Products / Hybrid Equipment Series / HD multi-directional motion mixer

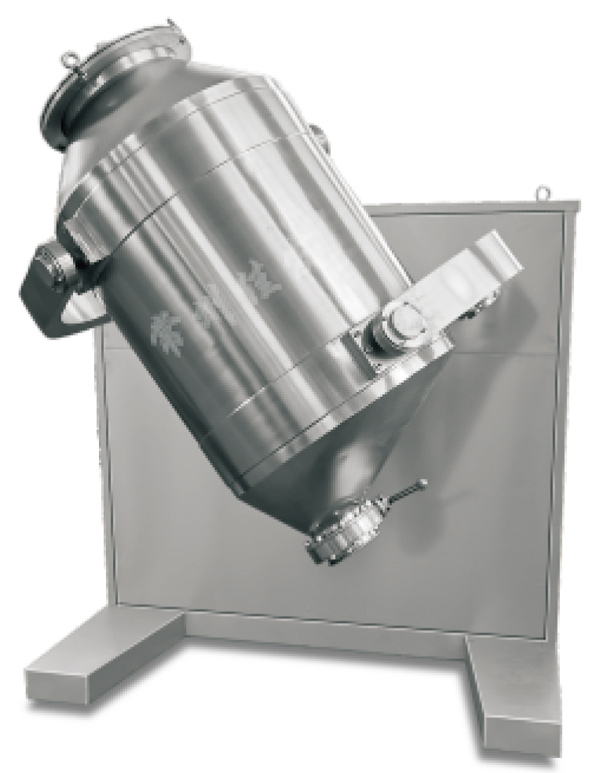

    HD multi-directional motion mixer
    Under the driving force of the active shaft, the loaded cylinder undergoes cyclic compound movements such as translation, rotation, and rolling, promoting the material to move in three directions along the cylinder, thereby achieving the mutual flow, diffusion, accumulation, and doping of various materials, and achieving the goal of uniform mixing. Used for high uniformity mixing of powder and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining, national defense industry, and various scientific research institutions.
    13606122988
    Details

    Equipment characteristics

    ★ The material has no centrifugal force, no specific gravity segregation, layering, or accumulation, and the mixing rate can reach 99.9%.

    ★ High loading rate, up to 80% (only 40% for ordinary mixers), high efficiency, and short mixing time.

    ★ The cylinder has circular arc transitions at all points, and has undergone precision polishing treatment to meet the "GMP" requirements.


    Parameters

    Project specifications

    HD-1

    HD-5

    HD-15

    HD-50

    HD-100

    HD-200

    HD-400

    HD-600

    HD-800

    HD-1000

    Barrel volume (L)

    1

    5

    15

    50

    100

    200

    400

    600

    800

    1000

    Maximum loading capacity (L)

    0.8

    4

    12

    40

    80

    160

    320

    480

    640

    800

    Maximum loading weight (kg)

    0.5

    2.4

    7.5

    25

    50

    100

    200

    300

    400

    600

    Spindle speed (r/min)

    15~30

    8~15

    Motor power (kw)

    0.12 0.25

    0.37

    1.1

    1.5

    2.2

    4

    5.5

    7.5

    7.5

    Overall dimensions

    (Long × wide × High)

    500×600

    ×600

    600×1000

    ×1000

    700×1000

    ×1000

    1000×1400

    ×1200

    1200×1700

    ×1500

    1400×1800

    ×1600

    1800×2100

    ×1950

    1900×2100

    ×2250

    2200×2400

    ×2300

    2250×2600

    ×2300

    Overall weight (kg)

    50

    150

    200

    300

    500

    800

    1200

    1500

    2000

    2500

    All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
