     Your current location ：Home　/　Products　/　Hybrid Equipment Series　/　LD series mixing hopper




































      •

      •

      •

























    1.

    2.

    3.















    LD series mixing hopper


    The LD series mixing hopper includes: LDZ lifting mixing hopper, LDT lifting mixing hopper, and LDY square turnover hopper.


    13606122988















    Details






    LDZ Lifting the mixing hopper

    LDT Lifting mixing hopper

    LDY Square turnover hopper










    Parameters

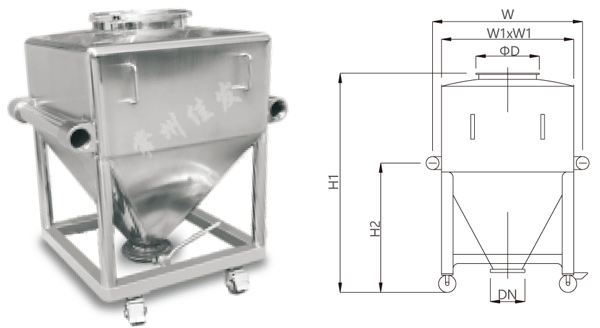

    Technical parameters of LDZ lifting mixing hopper
    Model
    Volume L
    Main structural dimensions
    H1
    H2
    H3
    ΦD
    Φd
    W1
    DN
    LDZ-300
    300
    1118
    960
    138
    400
    125
    794
    200
    LDZ-400
    400
    1287
    1130
    165
    400
    125
    794
    200
    LDZ-600
    600
    1366
    1200
    151
    500
    125
    994
    200
    LDZ-800
    800
    1545
    1375
    118
    500
    125
    994
    200
    LDZ-1000
    1000
    1586
    1400
    168
    500
    150
    1194
    250
    LDZ-1200
    1200
    1736
    1550
    181
    500
    150
    1194
    250
    LDZ-1500
    1500
    1868
    1680
    99
    500
    150
    1194
    250
    LDZ-1800
    1800
    1982
    1800
    141
    500
    150
    1194
    250
    LDZ-2000
    2000
    2238
    2055
    113
    500
    150
    1194
    250

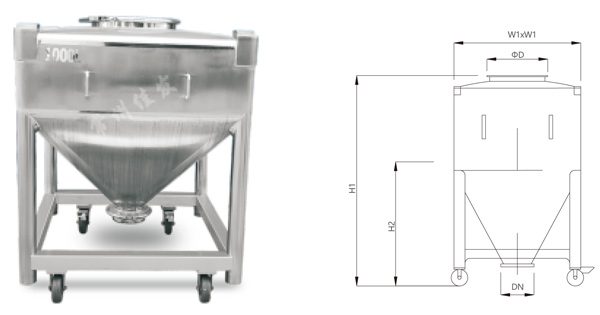

    Technical parameters of LDT lifting mixing hopper
    Model
    Volume L
    Main structural dimensions
    H1
    H2
    H3
    ΦD
    Φd
    W1
    DN
    LDT-50
    50
    714
    500
    130
    630
    200
    100
    150
    LDT-100
    100
    910
    550
    204
    630
    400
    100
    150
    LDT-200
    200
    946
    700
    100
    770
    400
    100
    200
    LDT-300
    300
    1258
    800
    180
    788
    400
    125
    200
    LDT-400
    400
    1318
    850
    166
    888
    400
    125
    200
    LDT-600
    600
    1475
    950
    163
    988
    500
    125
    200
    LDT-800
    800
    1508
    1000
    141
    1088
    500
    125
    200
    LDT-1000
    1000
    1672
    1050
    125
    1210
    500
    125
    250

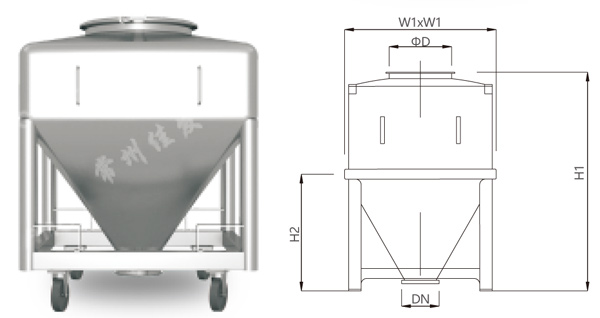

    Technical parameters of LDY square turnover hopper
    Model
    Volume L
    Main structural dimensions
    H1
    H2
    H3
    H4
    ΦD1
    W1
    W2
    DN
    LDY-500
    500
    1280
    920
    185
    100
    500
    894
    900
    200
    LDY-600
    600
    1416
    920
    185
    100
    500
    894
    900
    200
    LDY-800
    800
    1532
    970
    185
    100
    500
    994
    1000
    200
    LDY-1000
    1000
    1674
    1070
    185
    125
    500
    1094
    1100
    250
    LDY-1200
    1200
    1686
    1170
    211
    131
    500
    1194
    1200
    250
    LDY-1500
    1500
    1873
    1170
    211
    99
    500
    1194
    1200
    250
    LDY-1800
    1800
    1968
    1250
    211
    103
    500
    1294
    1300
    250
    LDY-2000
    2000
    2046
    1470
    100
    190
    500
    1400
    1406
    250
    LDY-2500
    2500
    2211
    1350
    100
    70
    500
    1400
    1406
    250
    LDY-3000
    3000
    2402
    1470
    100
    140
    500
    1494
    1500
    250
    LDY-3500
    3500
    2570
    1570
    120
    140
    500
    1600
    1606
    250
    LDY-4000
    4000
    2770
    1650
    120
    140
    500
    1600
    1606
    250
    All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
